Base modules A, B and C

Base modules A, B and C

Base modules A, B

Some examples of color design on facades and roof materials

Some variants of module connection (combinations)

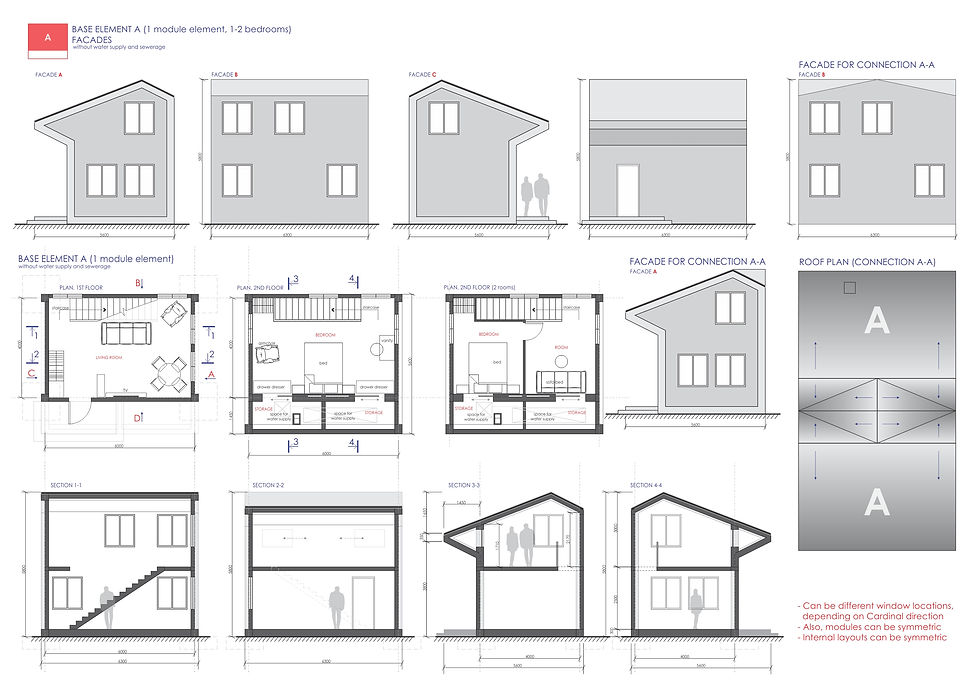

Base Module A (without water supply and sewerage) 1-2 bedrooms on the 2nd floor. With module B water supply and sewerage can be realized

Base Module A (without water supply and sewerage) 1-2 bedrooms on the 2nd floor. With module B water supply and sewerage can be realized

Combination AB (with water supply and sewerage) 1-2 bedrooms on the 2nd floor. +kitchen and bathroom

Combination AB (with water supply and sewerage) 1-2 bedrooms on the 2nd floor. +kitchen and bathroom
click on image for high resolution
​​
MODULE
HOUSE
Design concept of module home (cottage) for architectural competition, Russia, 2013.
Architects: Constantine Derbin, Nadezhda Krasilnikova, project 2013)
Last edition: 2016 / by Constantine Derbin
​
​
​
​
3D MODEL
RENDER
DRAWINGS
2013
​
LAST
EDITION
2016
Home is based on 3 standard modules (elements), that can be combined by various ways:
- module A (2 stories building/total area: 43.8 sqm.) with space for HVAC system, water storage (tank), water pumps, batteries and generators if needed.
- module B (1 story building/total area: 13.1 sqm.)
- module C (reduced height of module A: can be used as garage for 1 car or for additional rooms/total area: 21.9 sqm. )
Over time, additional modules can be connected easily to the base module or to already combined with several modules house, so the entire house can increase. Module house can be connected to a public water main and sewer main or can have its own water supply (water storage - tank) and small-scale sewage treatment system. It`s possible to install residential flat plate solar thermal collectors on the roof and home energy storage system.
There are huge number of combinations of modules, depending on owner`s preferences, a growing family. Also there are unlimited variations of internal layouts.
Also modules can be combined generally in a line as townhouses for several families.
So this module house can be built wherever you want, and can be whatever you want with the ability to change and being finished easily according to your wishes
​
​
​
​
​
